MODEL
|

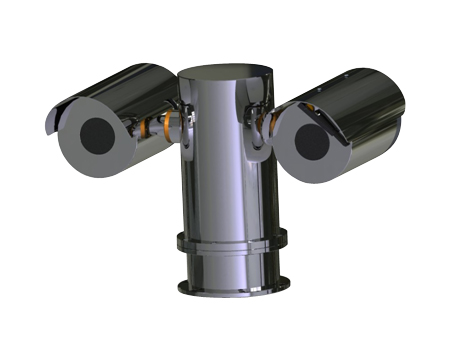

NSU-222-1-MX20IH
|
|
Camera
|
| Image sensor |
1/2.8" Panasonic CMOS Sensor |
| Effective Pixels |
1944 (H) x 1092 (V) = 2.12M Pixels |
| Scanning System |
Progressive Scan |
| Resolution |
Digital : 1080p/30(25)fps |
| Min. illumination |
Color : 0.5 lux , BW : 0.1lux
Color DSS : 0.002 lux , BW DSS : 0.001 lux |
| S/N Ratio |
more than 50dB (AGC off) |
| Lens |
20x Day & Night Zoom Lens |
| Zoom Ratio |
Optical x20, Digital x12 Zoom |
| Focal Length |
f = 4.7 mm ~ 94.0 mm |
| Angle Of View |
Wide |
62.7° |
55.4° |
32.6° |
| (D, H, V) |
Tele |
3.3° |
2.9° |
1.6° |
|
CAMERA FUNCTION
|
| Day & Night |
Auto / Day / Night / Ext-in |
| WDR/BLC |
Off / WDR / BLC / HLC |
| DNR |
Auto / Off / Low / Middle / High |
| Defog |
Off / On(Auto / Manual) |
| Digital Image Stabilizer |
Off / On |
| Privacy Mask |
Off / On (8 positions) |
| Digital Slow Shutter |
Off /x2 to x8 |
| White Balance |
Auto / One Push / Manual / Indoor / Outdoor |
| Shutter Speed |
1/30(25) ~ 1/30,000 sec |
| E. Zoom |
Off / x2 ~ x12 |
|
PAN/TILT
|
| Pan |
360° Endless |
| Tilt |
180° (90° ~ - 90°) |
| Pan/Tilt Speed |
1° to 30°/sec |
|
NETWORK
|
| Ethernet |
RJ-45 (10/100BASE-T) |
| Video Compression |
H.264, MPEG-4, MJPEG |
| Resolution |
1920x1080,1280x960,1280x720,1024x768,800x600,720x576,640x480,320x240 |
| Streaming Capability |
Triple streaming |
| Alarm |
In 1ch / Out 1ch |
| Audio In / Out |
Mic In / Audio Out |
| Audio Compression |
G.711 u-law |
| Audio Communication |
Bi-directional audio |
| IP |
IPv4, IPv6 |
| Protocol |
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS |
| ONVIF |
Support |
| Webpage Language |
Korean, English |
| Web Viewer |
Windows XP/VISTA/MAC OS X
Microsoft Internet Explorer, Firefox, Google, Chrome, Apple Safari |
|
GENERAL
|
| Power Source |
AC220V,60/50Hz |
| Operating Temperature |
-10°C ~ +55°C |
| Ingress Protection |
IP67 |
| Material |
Stainless steel 316L |

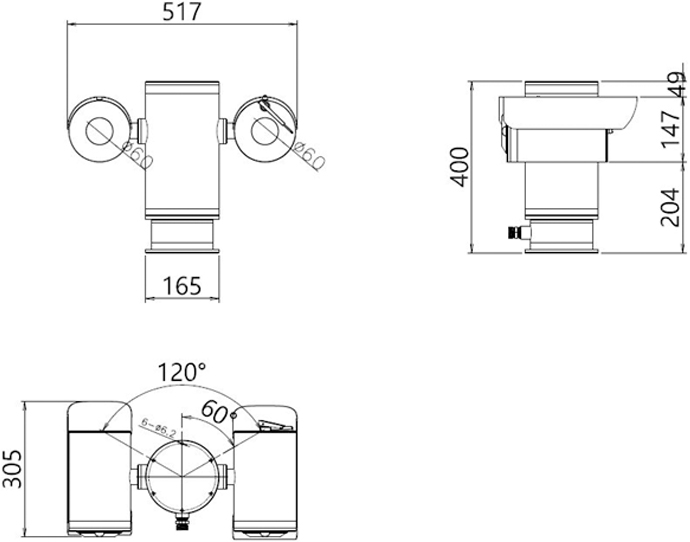

| Dimension (WxH) |
517 x 400 mm |
| Weight |
Approx. 35Kg |
