NOP-211-1-X30IR

home icon   arrow icon   PRODUCTS   arrow icon      arrow icon
Big image
  • NOP-211-1-X30IR

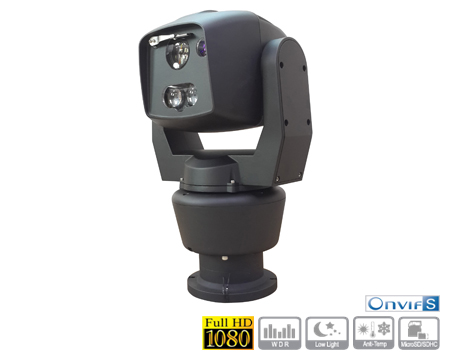

  • Full HD 2 Megapixel 30x IP IR PTZ Camera

LIST  PRINT

v 2 Megapixel Full HD
v X30 Auto Focus Zoom and Digital X12 Zoom, totally x 360 Power Zoom capability
v 360 degree endless panning
v Powerful night vision up to 300M view
v High-performance & Low-noise Wiper with anti-abrasion soft silicon rubber
v Hydro-phobic surface coated flat glass
v Anti-corrosion, anti-salt water powder coated surface finish
v WDR
v DEFOG (Embedded and adjustable defogger or image-enhancer)
v H.264: 30fps/1080p, MJPEG: 30fps/D1
v Integrated motion detection with pre- and post alarm image/video buffering
v Event-triggered FTP and email upload of still images and videos
v Full Duplex two way Audio support
v UPnP supported
v HTTPS supported (Hyper Text Transfer Protocol Secured)
v Integrated E-mail, FTP, DDNS and DHCP client
v Extensive CGI API for software integration and remote programming operations
v IP68 rated Weather resistant
v AC24V/2.5A
Model NOP-211-1-X30IR
Camera Image sensor 1/2.8” 2.0 Megapixel Progressive scan CMOS Exmor
Day & Night Auto/Color/BW/EXT(CDS)/Time
Environment IP68
Optical Zoom 30X
Digital Zoom 12X
Lens 30x AF zoom ( f4.3~f129mm (F1.6~F4.7))
IR Distance 300M
Min. illumination 0 Lux with IR
Pan / Tilt Pan: 360 Endless (120 deg/sec)
Tilt: -40~100 deg (Auto flip) (90 deg/sec)
Special: On display mouse control (Remote control)
WDR/BLC ON/OFF
Noise Reduction ON/OFF(Level 5 to 1/Off, 6steps)
White Balance Auto/ ATW/ One push/ Manual WB/ Indoor/ Outdoor/ etc
Video Video compression H.264 High Profile, Motion JPEG
Resolutions Up to 1920 x 1080 (Full HD)
Frame rate H.264 Up to 30fps with 1920x1080
MJPEG Up to 30fps with D1 resolution
Video streaming Support multi stream with H.264, MJPEG
Adjustable frame rate
CVBR/CBR in H.264
Image Setting Day & Night
Auto White Balance
Auto Exposure
Effect - Color, Sharpness, Mirror/ V-Flip, etc.
Privacy Mask
Audio / Alarm
(Optional)		 Audio Streaming Two Way, Full Duplex
Audio Compression G.711
Sample Rate 8KHz
Data Rage 64Kbps
Audio input Microphone input/1 x Line-in (Mono)
Alarm In/Out In: 1, Out: 1 (Mono)
System Integration Security Password Protection, User access log, HTTPS encryption
Supported protocol HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelligent video Motion detection up to 1920x1080 with 4x3 blocks
Alarm events File upload via ftp, E-mail, Notification via email, FTP and TCP
Video buffer 5MB pre-alarm and post-alarm
Recording Saves to MicroSD Card with event mode and continuous mode
Firmware upgrade Remote upgrade via network
API CGI Interface document, ActiveX Interface(ocx(dll) + document)
Physical Reset Button 1 x Factory Reset Button
Power Source AC 24V/3.0A
Power Consumption Max. 50W
Weight (Appr.) 12.5Kgs
LED's Network Connection (Side)
Wiper AUTO/ON/OFF

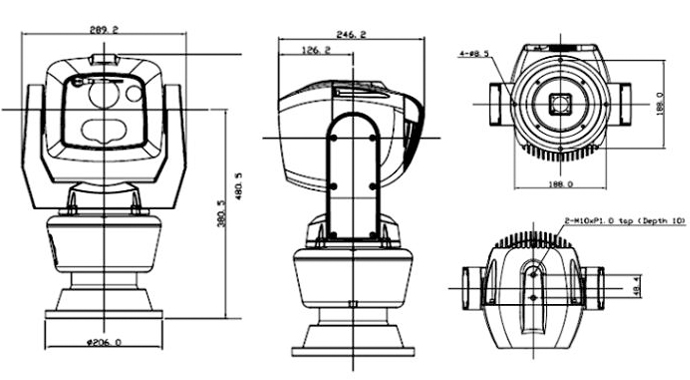

Dimension(mm) 481(H) x 289(W)
General Operating Temperature -30 degree~60 degree Celsius
Storage Temperature -40 degree~60 degree Celsius
Software Included Software NVR C/S (16 Channel), IP Installer (Windows only)
Package Contents Network Camera, User Manual, Software CD, External Power Adaptor (optional)
Output Cable AC24V (+) / AC24V (-)
LAN Cable (RJ45)Jack
RS485 (+) / RS485 (-)
ALARM IN (#1), ALARM IN (#2)
ALARM OUT(COM), ALARM OUT (NO)
AUDIO IN/ GND/ OUT
